AP-KIT403 4 channel POE complete set

€ 165,00
Productcode: AP-KIT403
Omschrijving

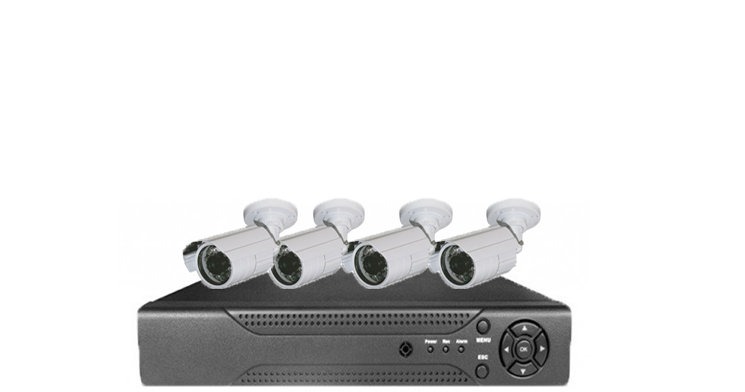

Complete Pakket, Dvr Recorder 4 x POE + 4 Buiten/binnen bewakingscamera's + UTP bekabeling + voeding

4 pcs metal bullet camera POE sony IR leds
1pc 4CH H.264 DVR with VGA, support mobile monitor 4 x POE
4pcs 18 meter(60ft) video+power Cable (UTP)
1pc DVR mouse
1pc DVR remote control



Aantal Kanalen 4
Video Compression Format H.264
Video Frame rate PAL: 25 fps
Video code rate 64 Kbps -- 2.0 Mbps, 10 ranges optional
Video input UTP
Video output CVBS 4 x POE PAL
Video output VGA 1x VGA              Resolutie 800x600P
Video output HDMI 1x HDMI            Resolutie 1920x1080P
Audio input RCA 4-kanaals
Audio output RCA 1-kanaal
Display resolutie D1 704x576 / CIF 352x288
Display frame rate 200 fps verdeeld over 8 camera’s
Opname resolutie D1 704x576 / CIF 352x288
Playback resolutie 4x D1
Ethernet RJ-45 Ethernet connector; Support Static, Dynamic IP and Support TCP/IP, PPPOE, DHCP, DNS DDNS, UPNP
Internet mobiel Support Internet Explorer, Mobile phone(Iphone/Windows/Andriod/Symbian/Blackberry), and CMS
Bediening  PTZ RS485 x 1,1 2x USB2.0, 1x USB2.0 mouse
Besturing Support PELCO-P&PELCO-D PTZ control
Geheugen Support 1 SATA Hard Disk interface,  max. 4 TB
Data Stream Type Audio and video stream / video stream?support variable bit rate (VBR) / constant bit rate (CBR)
Dual-Stream Ja
Audio Compression Standard ADPCM
Data Storage Type 1 SATA interface ,elke interface HDD heeft maximaal geheugen van 4TB.
Backup Method USB /Network Backup
Network Interface RJ45 10M / 100M Auto-adapt Ethernet port
Voice intercom input 1 CH?RCA ?
USB Interface Two USB2.0 interfaces?
Serial interface 1 CH?RS485
Operating System Embedded Linux operating system
Equipment control Infrared remote control and mouse
Afmetingen en gewicht 354x245x45mm (LxWxH) Gewicht :4.0Kg
Power Input DC +12 V / 2A ?
Working Temperature -10? — 55?
